Threaded Drilling Tools
Manufacturer of Rock Drilling, Construction, Mining and Quarrying Tools
Extension Drill Tools (System): R22/R25/R28/R32/R35/R38/T35/T38/T45/T51/ST58/GT60/ST68 Threaded
A. Shank Adapter + M/F Rod + Thread Drill Bits
B. Shank Adapter + Coupling + M/M Drill Rod + Thread Drill Bits
R22 Thread
R22 (7/8″) SERIES (Recommended bit diameter Dia.33~Dia.45)
R25 Thread
R25 (1″) SERIES (Recommended bit diameter Dia.33~Dia.45)
R28 Thread
R28 (1 1/8″) SERIES (Recommended bit diameter Dia.37~Dia.45)
R32 Thread
Bench and production drilling:
Extension rods, R32-Round32-R32, length 915mm/1000mm/1220mm/1830mm/2435mm/3050mm/3660mm
M/F rods, R32-Round32-R32, length 915mm/1220mm/1525mm/1830mm/2435mm/3050mm/3660mm
Guide speed rods, R32-Round39-R32, length 3050mm/3660mm
Guide tube, R32-Round46-R32, length 1220mm/1525mm/1830mm/3050mm

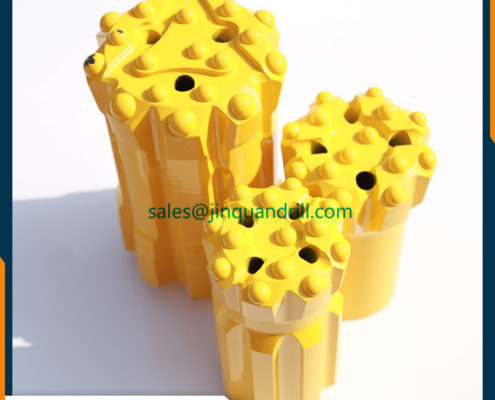

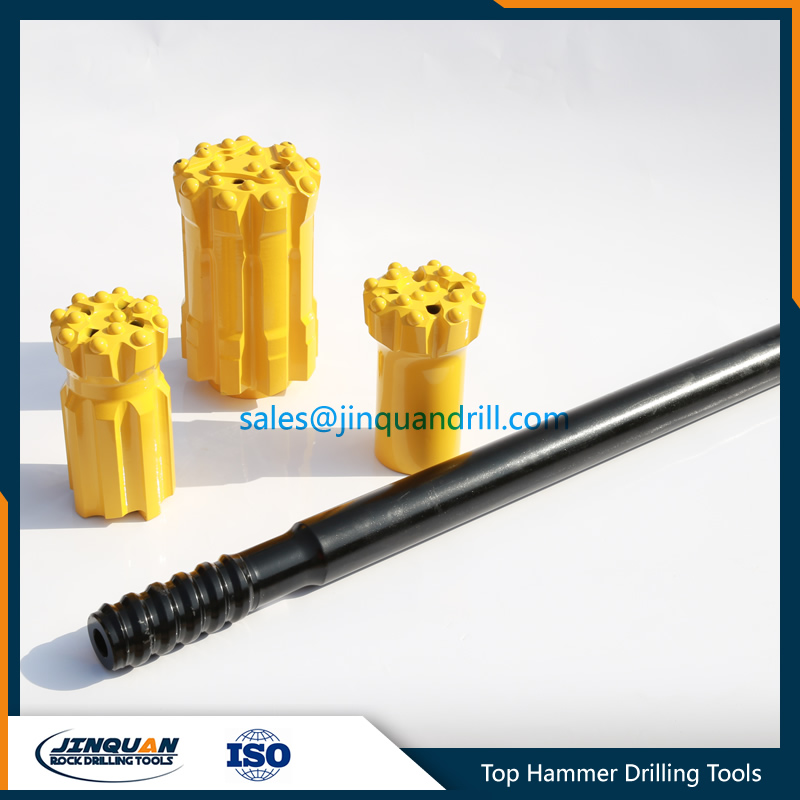

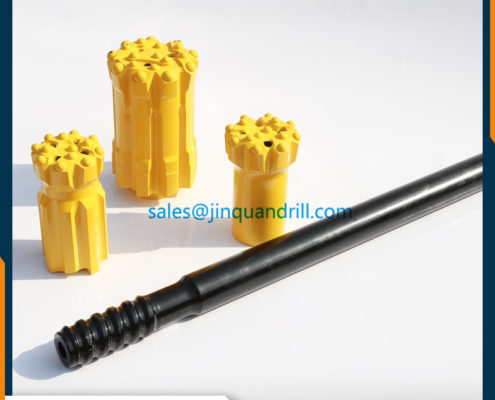

Button bits, R32-45mm, R32-51mm, R32-64mm, R32-76mm etc
Drifting and tunneling:
Drifter rods R32-Hex.25-R25-Length(2100mm-3700mm)
Extension rods R25-Hex.25-R25-Length(915mm-3050mm)
Speed rods R25-Hex.25-R25-Length(610mm-1220mm)
Drifter rods R32-Hex.28-R28-Length(2400mm-4920mm)
Extension rods R28-Hex.28-R28-Length(3050mm)
Speed rods R28-Hex.28-R28-Length(3050mm)
Drifter rods R38-Hex.32-R28-Length(2900mm-4310mm)
Drifter rods R32-Hex.32-R28-Length(3090mm-4310mm)
Drifter rods R38/T38-Hex.32-R32-Length(2400mm-5530mm)
Drifter rods R38/T38-Hex.35-R32-Length(3090mm-6100mm)
Speed rods T38-Hex.35-R32-Length(3700mm-6400mm)
T38 Thread
Extension rods, T38-Round39-T38, length 1220mm/1525mm/1830mm/2435mm/3050mm/3660mm/3965mm/4270mm/4880mm/5530mm/6095mm
Double thread extension rods, T38-Round39-T38, length 3050mm/3660mm

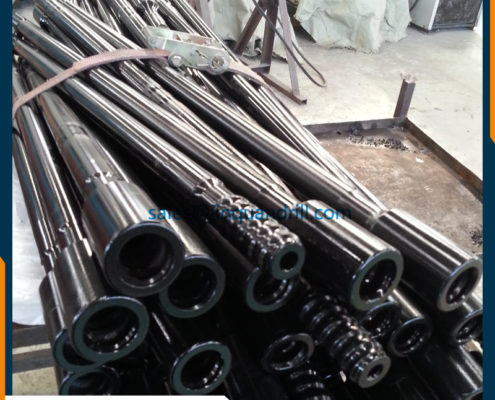

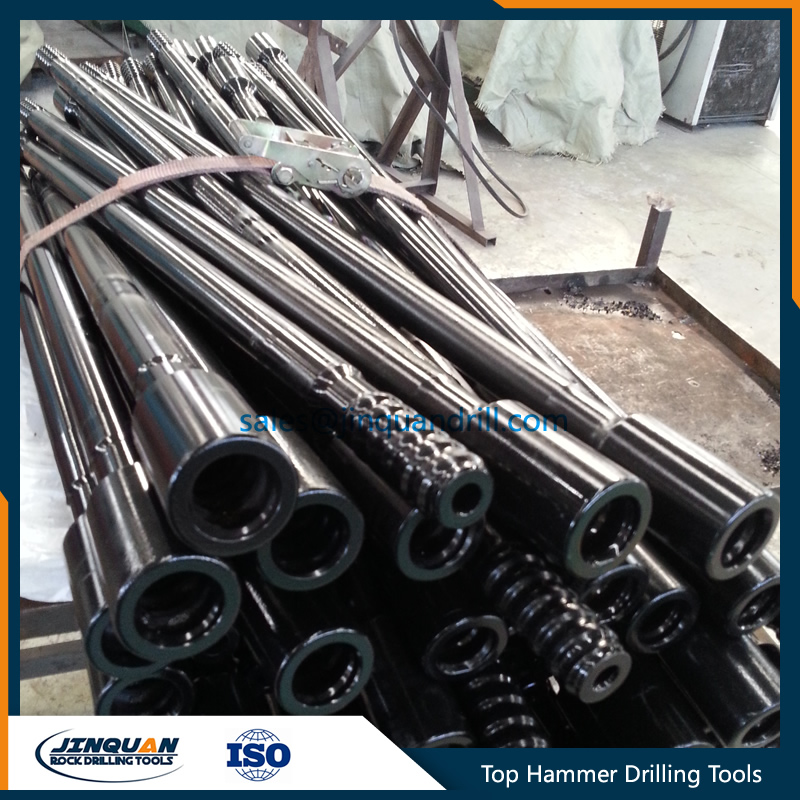

M/F rods, T38-Round39-T38, length 915mm/1220mm/1525mm/1830mm/3050mm/3660mm/4270mm/4880mm/5530mm/6095mm
Guide speed rods, T38-Round46-T38, length 1830mm/3050mm/3660mm/4270mm/4880mm/5530mm/6095mm
Guide tube, T38-Round56-T38, length 1220mm/1525mm/1830mm/3050mm/3660mm/4920mm
Hex extension rods, T38-Hex32-T38, length 1220mm/1830mm/2435mm/3050mm/3660mm

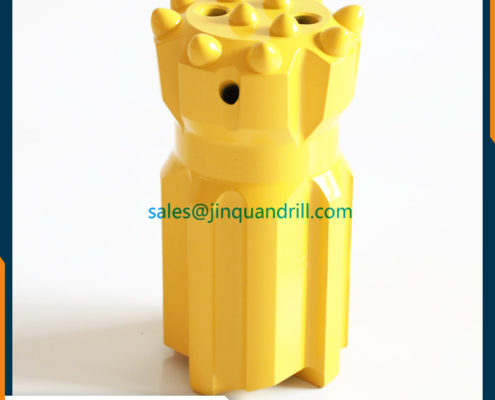

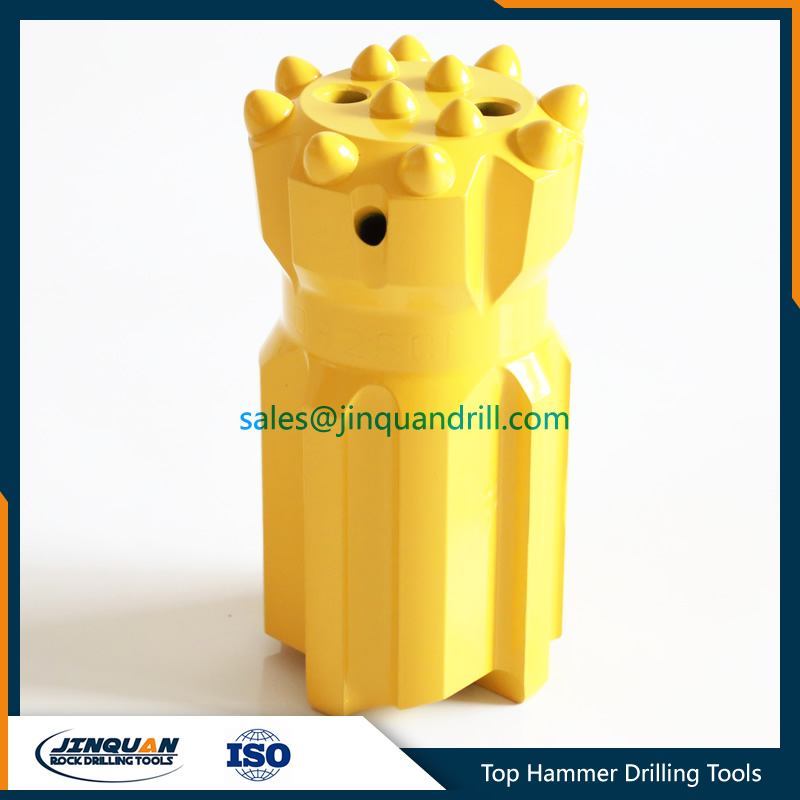

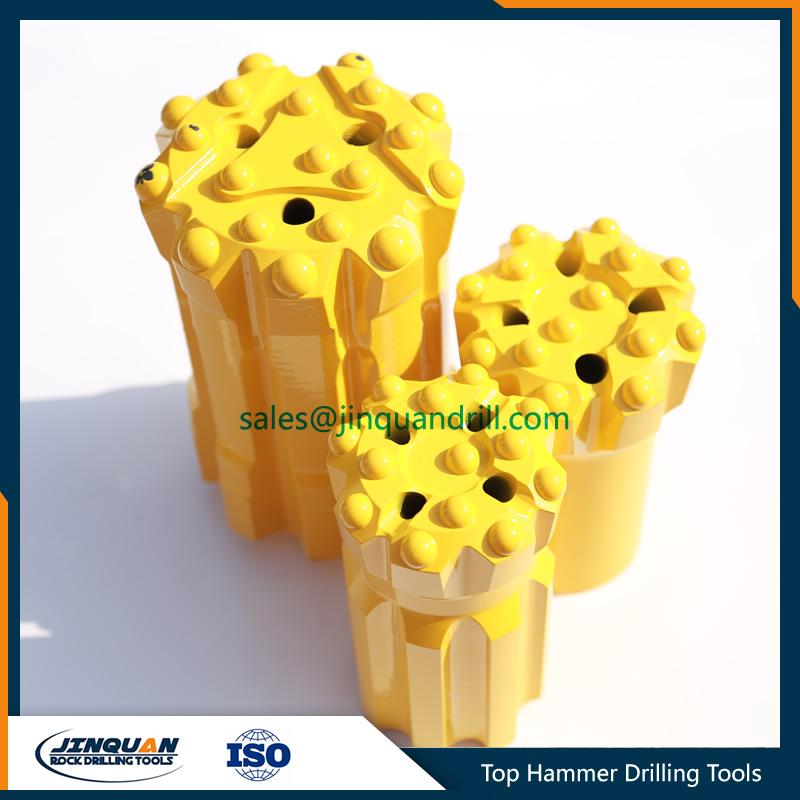

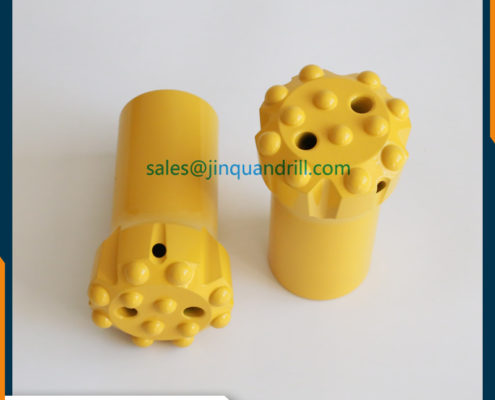

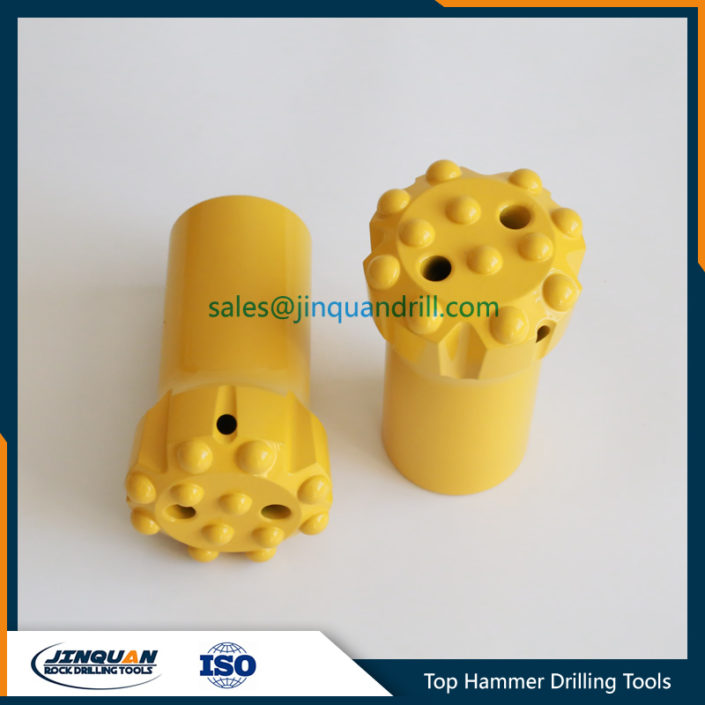

Button bits, T38-64mm, T38-76mm, T38-89, T38-102mm etc
T45 Thread
Extension rods, T45-Round46-T45, length 1830mm/2435mm/3050mm/3660mm/4270mm/5530mm/6095mm
M/F rods, T45-Round46-T45, length 1525mm/1830mm/3050mm/3660mm/4270mm/5530mm/6095mm
Guide speed rods, T45-Round52-T45, length 3050mm/3660mm/4270mm/5530mm/6095mm
Guide tube: T45-Round64-T45, length 1220mm/1525mm/1830mm/3050mm/3660mm
Guide tube: T45-Round76-T45, length 1830mm/3660mm
Button bits, T45-76mm, T45-89mm, T45-102mm etc

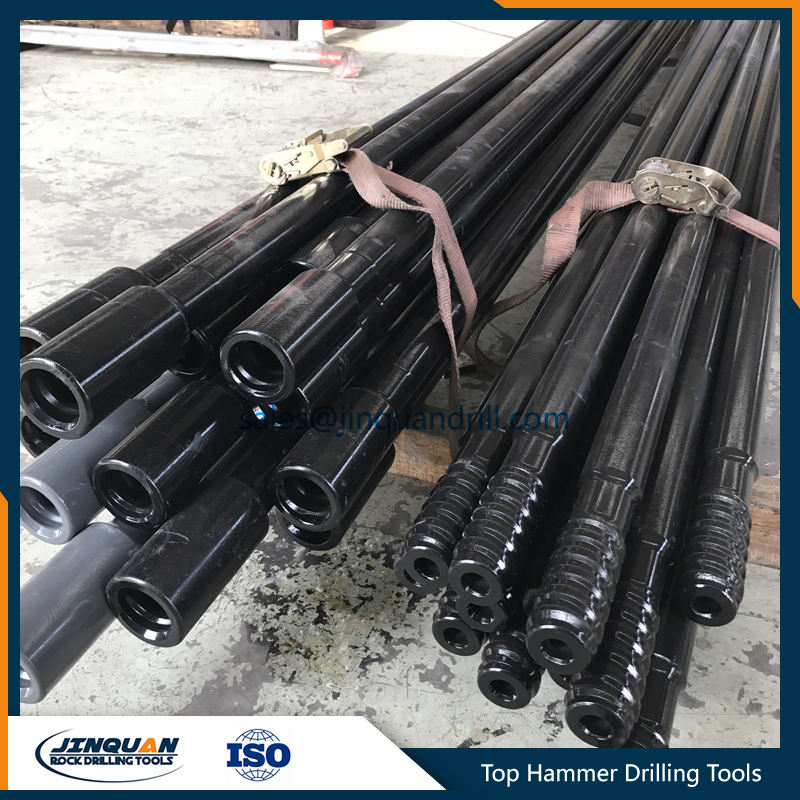

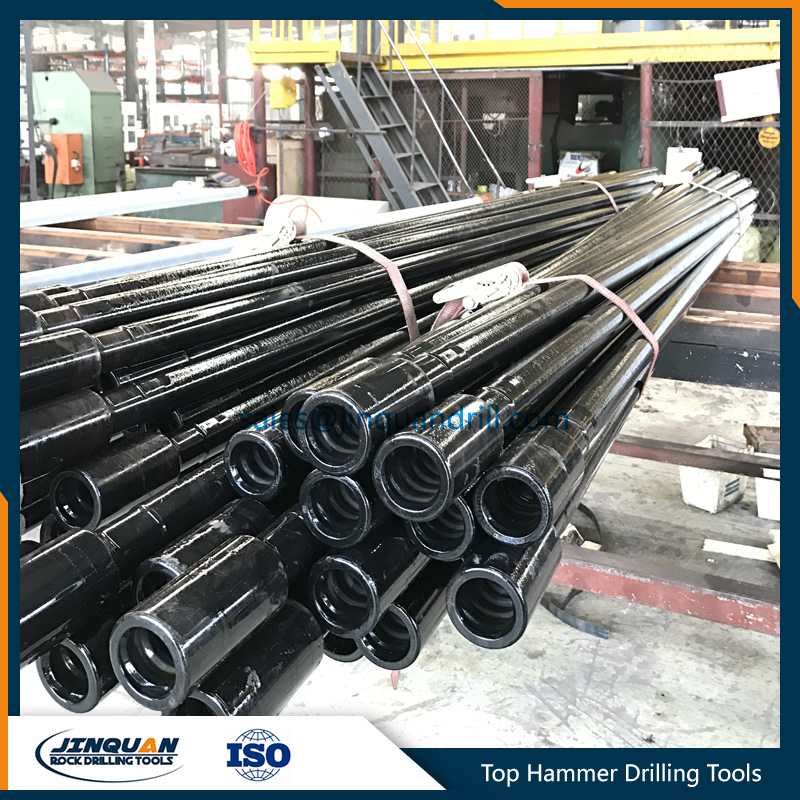

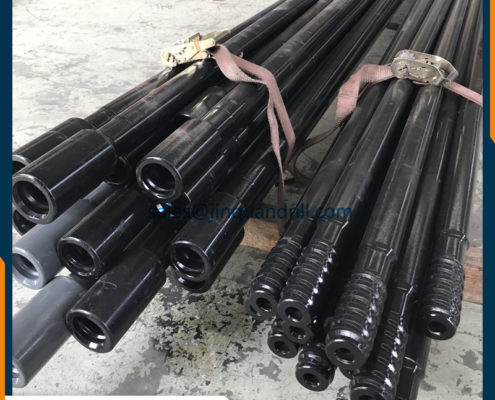

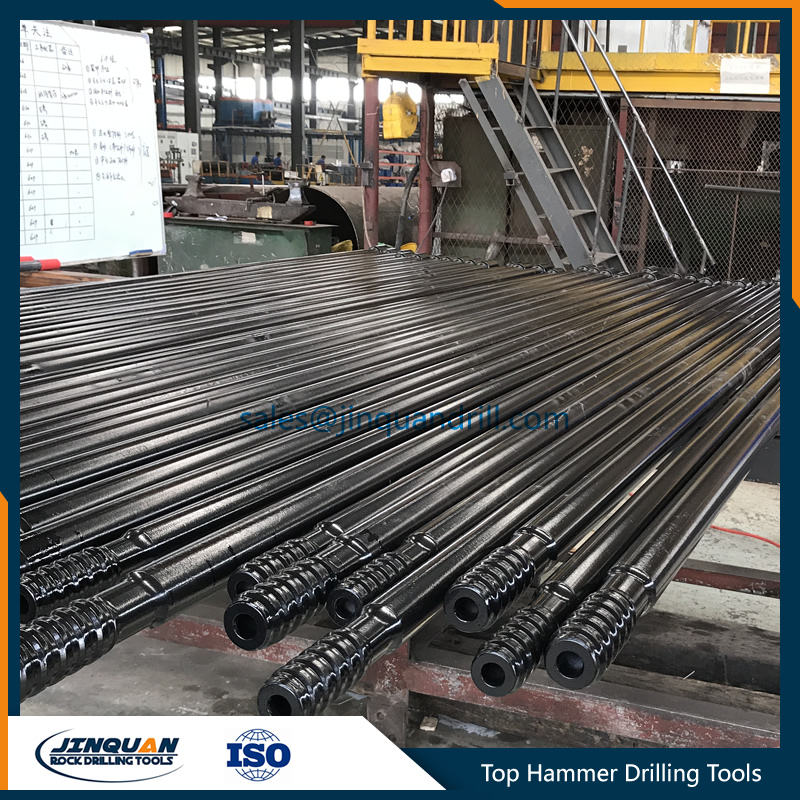

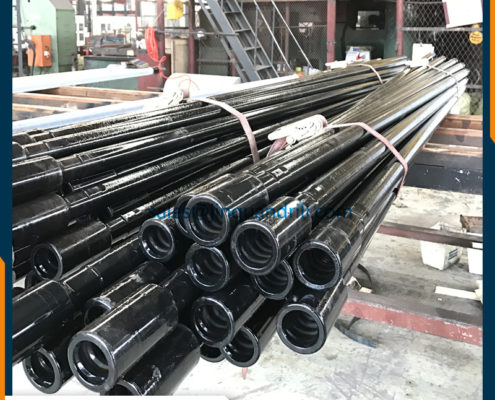

T51 Thread

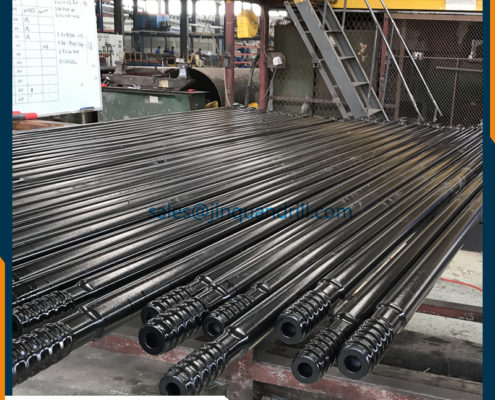

Extension rods, T51-Round52-T51, length 3050mm/3660mm/4270mm/4880mm/5530mm/6095mm
M/F rods, T51-Round52-T51, length 1525mm/1830mm/3050mm/3660mm/4270mm/4880mm/5530mm/6095mm
Guide rods, T51-Round76-T51, length 1830mm/3660mm
Guide tube, T51-Round87-T51, length 3660mm

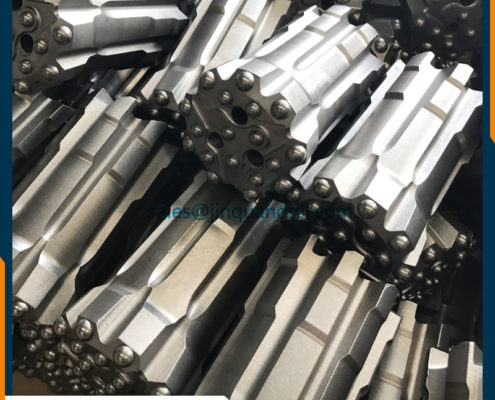

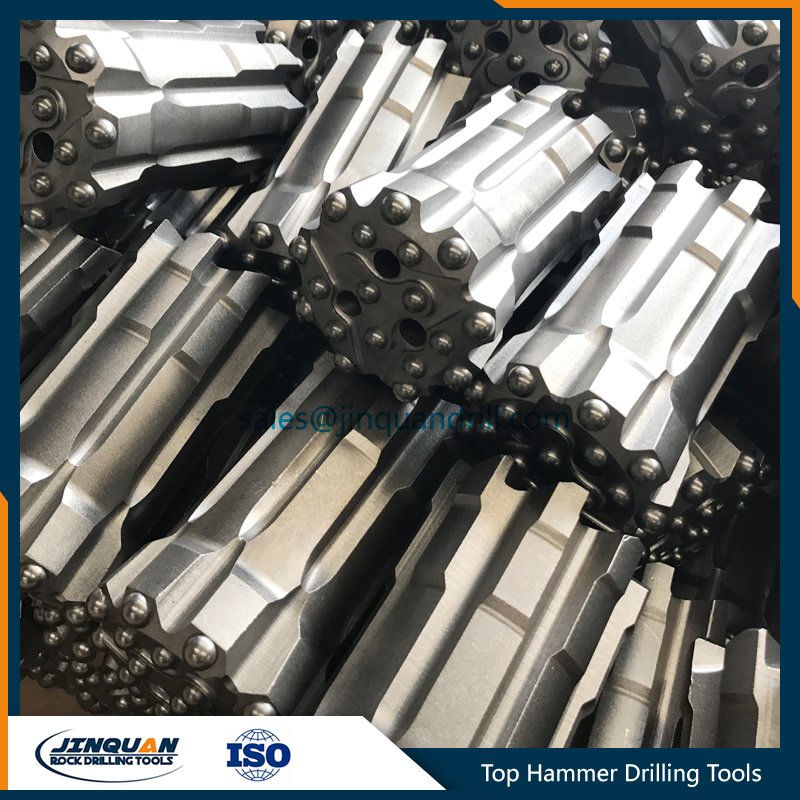

Button bits, T51-89mm, T51-102mm, T51-127 etc
GT60 Thread
M/F rods, GT60-Round60-GT60, length 3660mm/4265mm/6095mm
Button bits, 92mm, 102mm, 115mm, 127mm, 140mm, 152mm
